主頁 > 產品服務 > AsteRx-i3 S Pro+
  • AsteRx-i3 S Pro+
AsteRx-i3 S Pro+

AsteRx-i3 S Pro+

AsteRx-i3 S Pro+

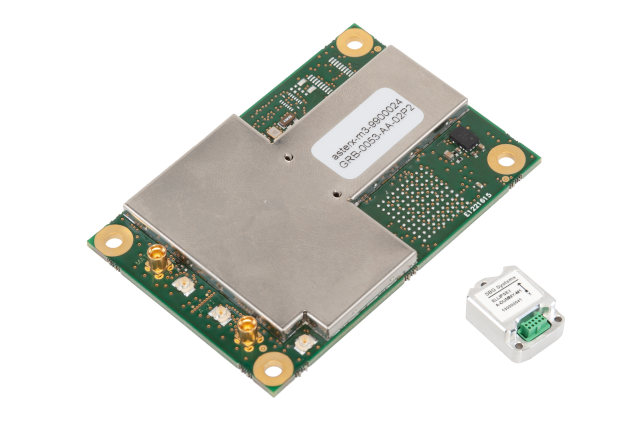

GNSS/INS board with tethered IMU for flexible installation

      AsteRx-i3 S Pro+ delivers reliable centimeter level positioning combined with 3D orientation in demanding environments. Its sensor fusion provides orientation and positional dead-reckoning, making it ideal for systems that require continuous positioning even during short GNSS outages. AsteRx-i3 S Pro+ allows full flexibility of usage providing raw data and enabling tethered IMU installation precisely at the motion point-of-interest.



Key Features

  • Reliable and accurate IMU-enhanced RTK GNSS positioning down to the centimeter level
  • Full access to raw GNSS and IMU data
  • Tethered IMU installation with pitch and roll data
  • Heading available immediately from initialization with dual antenna configuration
  • Lightweight, low power and compact
  • AIM+uniqueinterference?monitoring and?mitigation?system +?advanced otherGNSS+ algorithms

Get to know our GNSS+INS receiver OEM board

      The AsteRx-i3 S Pro+ is not only delivering an already integrated position, but it also provides raw GNSS and IMU data, already synchronized and in a single data stream for customers that will integrate those components with other sensors for a larger data fusion system (i.e. lidar). Having GNSS and IMU hardware already integrated and data streams already synchronized enables users to focus on their own core technology without having to integrate GNSS and IMU sensors themselves. The tethered IMU allows to install the board where there is more space for it and to install the IMU close to the point of interest with the orientation aligned to the frame of interest.

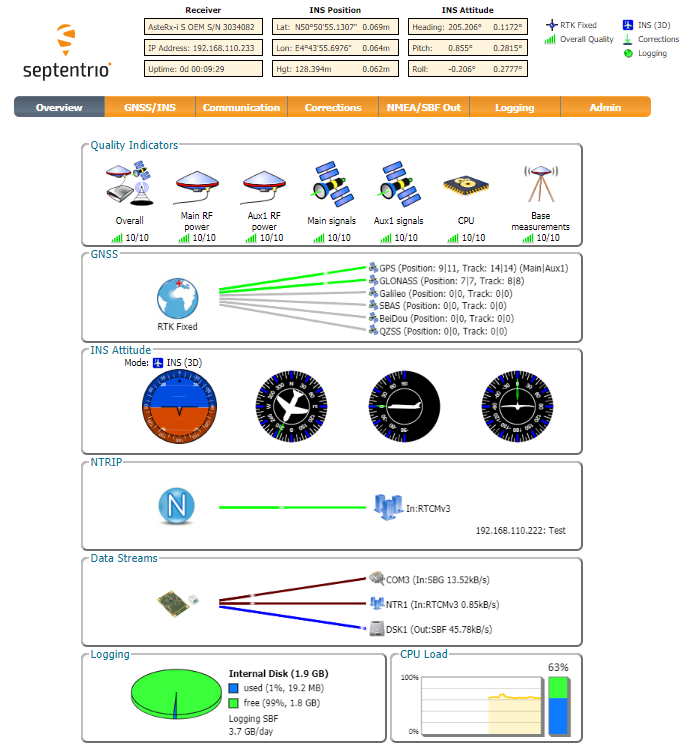

Intuitive web user interface



      This receiver includes an intuitive web user interface for easy operation and monitoring allowing you to control the receiver from any mobile device or computer. The web interface also uses easy-to-read quality indicators ideal to monitor the receiver operation during the job at hand.

Wherever?reliable high-precision GNSS positioning is needed:




摘錄自:AsteRx-i3 S Pro+ GNSS/INS Receiver with tethered IMU| Septentrio
